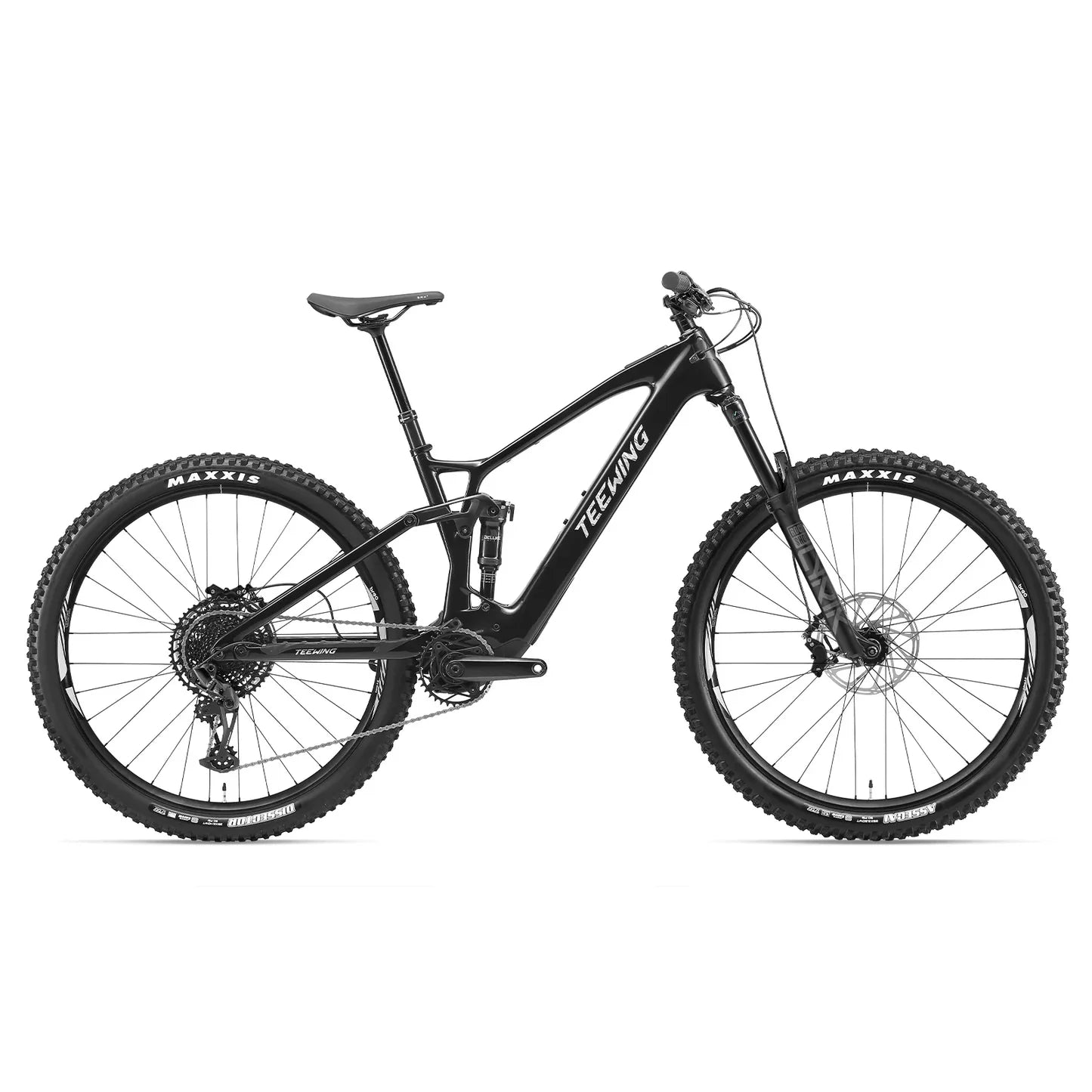

Teewing Turbo Force

$10,990.00 NZD

Sale Coming Soon

Shipping calculated at checkout.

Size M L XL

Teewing Turbo Force redefines e-mountain biking with a cutting-edge DJI Avinox motor that delivers 105 N·m of torque in a sleek, compact design. Built on a lightweight yet stiff Teewing Turbo Force carbon frame, it offers nimble handling and a dynamic trail experience. Topping it off, the bike features a SRAM GX Eagle drivetrain for smooth shifting and reliable performance, paired with the plush RockShox FS Lyric BASE fork and DELUXE SELECT+ rear shock to absorb every bump. With its long-lasting 800Wh battery and fast-charging system, the Turbo Force keeps you riding longer and faster with confidence.

View full details

Overview

Features

Specs

Sizing

Why Teewing

DJI Avinox – experience for yourself the system that is getting rave reviews around the world. 105 N.m of torque delivered in a smooth, compact and intuitive ride. Everyone who rides one is blown away!

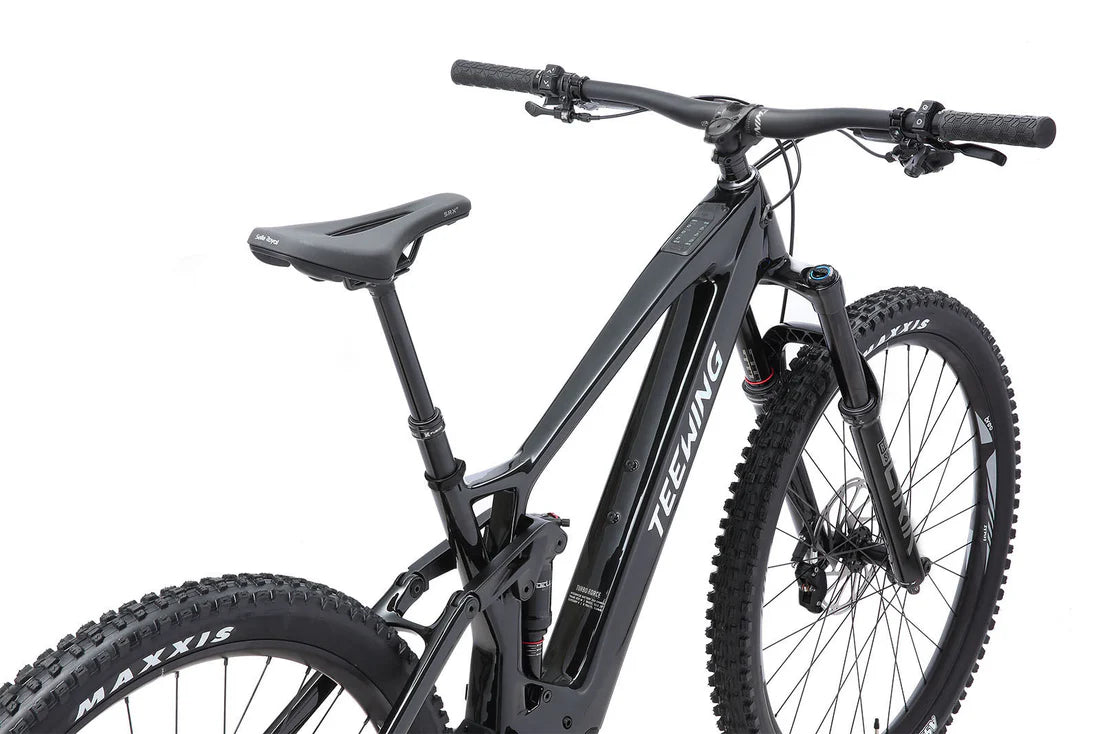

Carbon Frame – enhanced stiffness but still weighing only 2.37kg, the frame and its geometry provide nimble ride whether climbing or descending. Total bike weight is under 50lbs (22.7kg) with an 800Wh high-capacity battery!

Value – you get a cutting-edge drive system with proven brand-name components and a great design, all for highly competitive price.

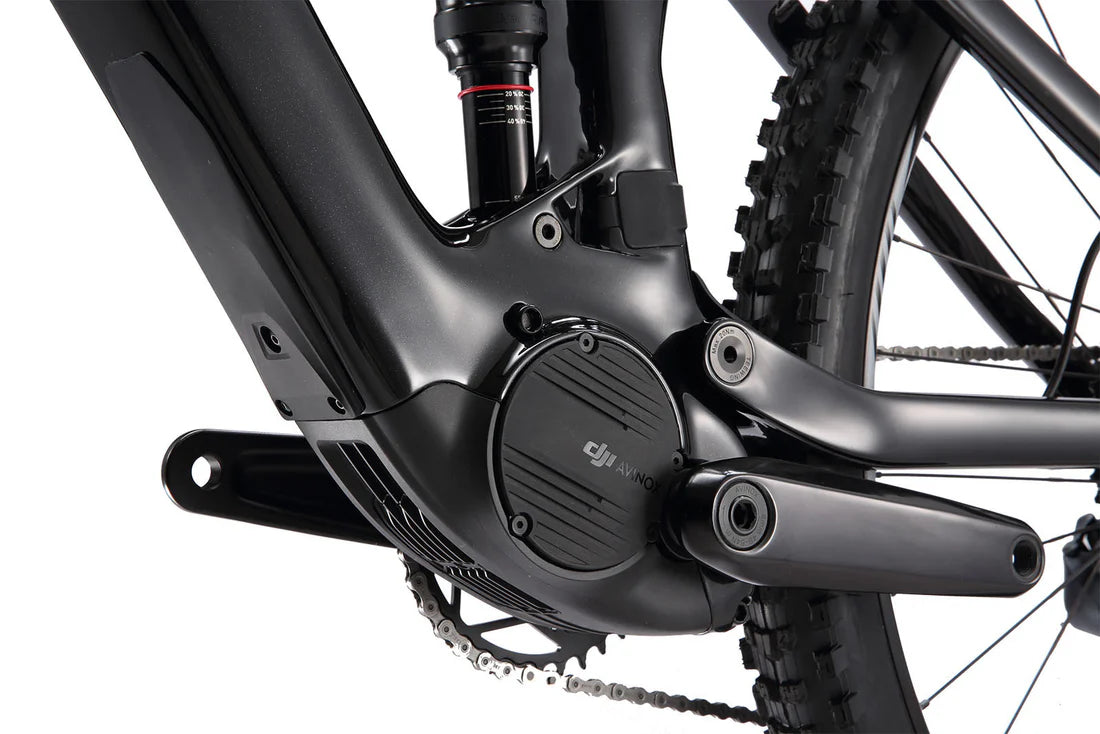

DJI Avinox M1 Motor

The Teewing Turbo Force XT E-Bike is equipped with the DJI Avinox M1 Drive Unit, a compact motor weighing approximately 2.52 kg. Despite its lightweight design, it delivers a continuous torque of 105 N·m, providing robust power to tackle diverse terrains with ease. The M1 Drive Unit offers multiple assist modes, including Auto, Eco, Trail, Turbo, and Boost, allowing riders to customize their riding experience. This integration enhances the Teewing Turbo Force's performance, offering riders a seamless and powerful experience across challenging landscapes.

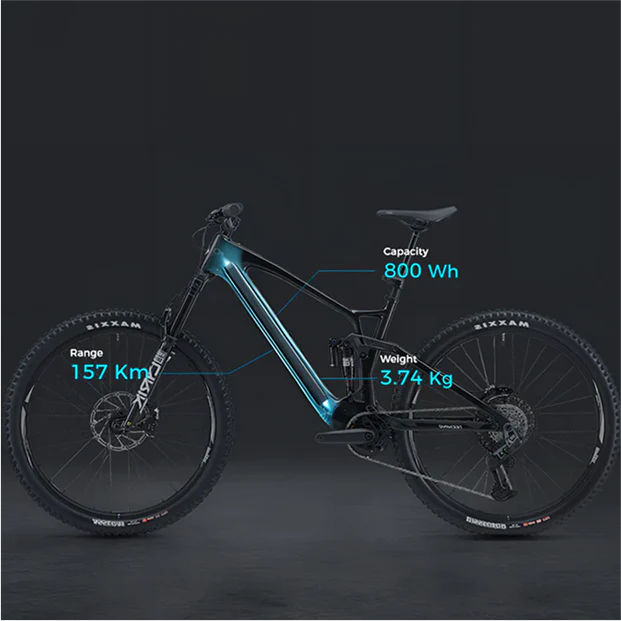

Lightweight, High-Capacity Battery

The Teewing Turbo Force XT E-MTB is equipped with DJI's 800Wh battery, weighing approximately 3.74 kg. This lightweight, high-capacity battery offers an impressive range of up to 157 km, enabling riders to embark on extended adventures with confidence.

Optimized Frame Geometry

The Teewing Turbo Force XT e-bike is meticulously engineered with a 445mm chainstay length, a 77-degree seat tube angle, and a 64.5-degree head tube angle paired with a 44mm rake. This geometry ensures agile handling, optimal weight distribution for efficient climbing, and enhanced stability during descents and braking.

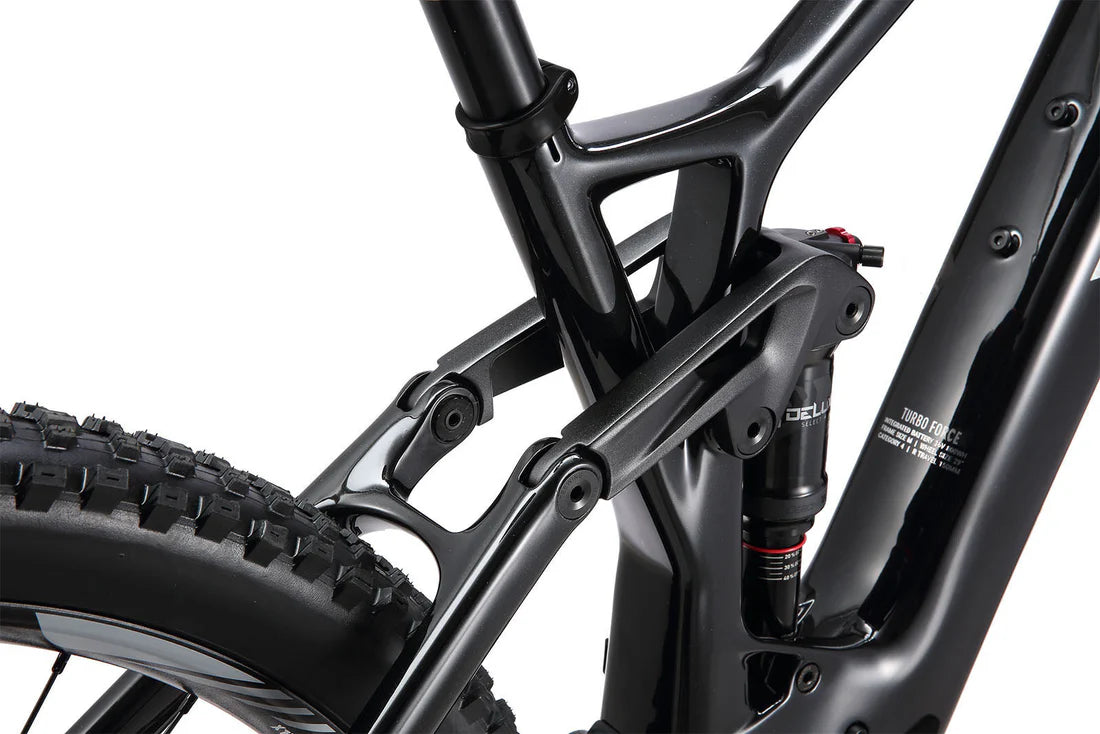

Enhanced Frame Stiffness

The Teewing Turbo Force XT carbon frame is crafted with monocoque technology and continuous reinforcements at critical junctions for superior structural integrity and load distribution. Weighing only 2.37kg, it delivers exceptional torsional rigidity—especially in the rear triangle—for high-performance, unmatched handling.

Hi-Amp Fast Charger

Utilizing GaN fast charging technology with a max rate of 508W, the 800Wh battery can be charged from 0% to 75% in approximately 1.5 hours, allowing for rapid recharges in a short time span. The fast charger is portable and can be easily carried in a frame bag.

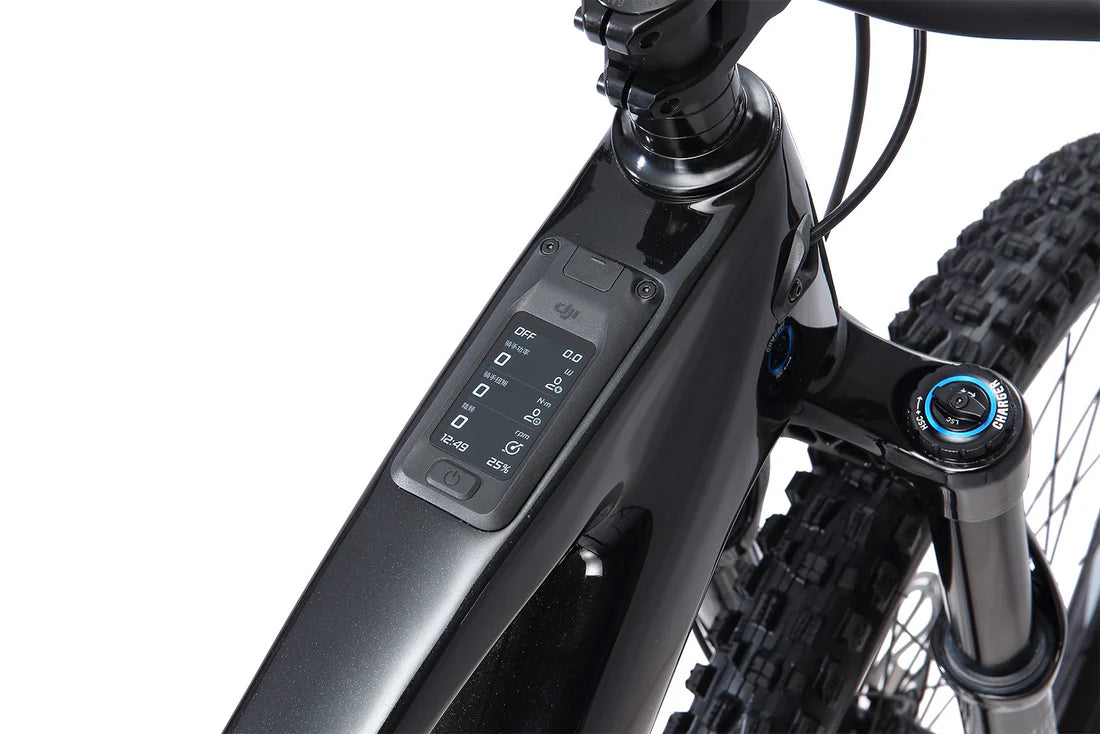

Smart Touchscreen Control

A 2-inch OLED touchscreen with automatic brightness, offering a customizable interface and seamless connection to the Avinox app. It tracks over 40 data points, ensuring clear visibility in any weather with dustproof, water-resistant, and anti-glare capabilities.

Avinox App

The Avinox app connects to the bike via Bluetooth, enabling personalized riding data configuration, abnormal
movement alerts, and other features.

After connecting to the Avinox app, users can customize the parameters shown on the Control Display according to their riding preferences and scenarios. They can also adjust riding parameters directly on the mobile app as needed.

Customizable Riding

The Avinox Drive System features four riding assist modes: Auto, Eco, Trail, and Turbo, and a special Boost mode can be quickly activated for more challenging terrain. In Boost mode, riders can enjoy a max 30 seconds of 120N·m drive torque and an instantaneous max output of 1000 W, allowing for easier handling of complex conditions.

In addition, parameters such as assist level and range, max torque, start assist, and continued assist can be adjusted for each assist mode (with the exception of Boost mode) via the Avinox app, and changes can be synced to the system instantly.

Auto

Designed for broad adaptability and long-range use, the innovative Auto mode utilizes multi-sensor fusion to automatically and continuously adjust assistance based on riding resistance.

Eco

Made to efficiently enhance long-range riding, Eco mode features gradual start-up acceleration and lower assistance, so riders can easily tackle flat terrain while conserving battery energy.

Trail

Aimed at mixed technical trails, Trail mode provides moderate start-up acceleration and stronger assistance, enabling riders to effectively overcome terrain challenges.

Turbo

Designed to assist with steep climbs, Turbo mode's aggressive start-up acceleration combined with maximum assistance, empowers riders to navigate challenging obstacles and terrain.

Boost

Boost mode offers up to 30 seconds of 120N·m drive torque and a max output of 1000 W, ideal for scenarios such as navigating challenging obstacles and complicated uphill climbs.

Model	Turbo Force（800Wh）
Frameset
Frame	Teewing Turbo Force Carbon Frame
Fork	Rockshox FS LYRIK BASE 29" BOOST, 15X110mm, 160mm travel, 44mm rake
Rear Shock	Rockshox DELUXE SELECT+, Trunnion (185mm×55mm), LINEAR AIR CAN. 150mm travel.
E-Bike System
Motor	DJI Avinox M1 Drive Unit: 105 N·m
Interface	DJI Avinox Screen: 2-inch OLED Control Display. Wireless Controllers: Right and left sides.
Battery	DJI Avinox Integrated Battery: 800Wh
Charger	DJI Avinox Hi-Amp Fast Charger: 12A/508W

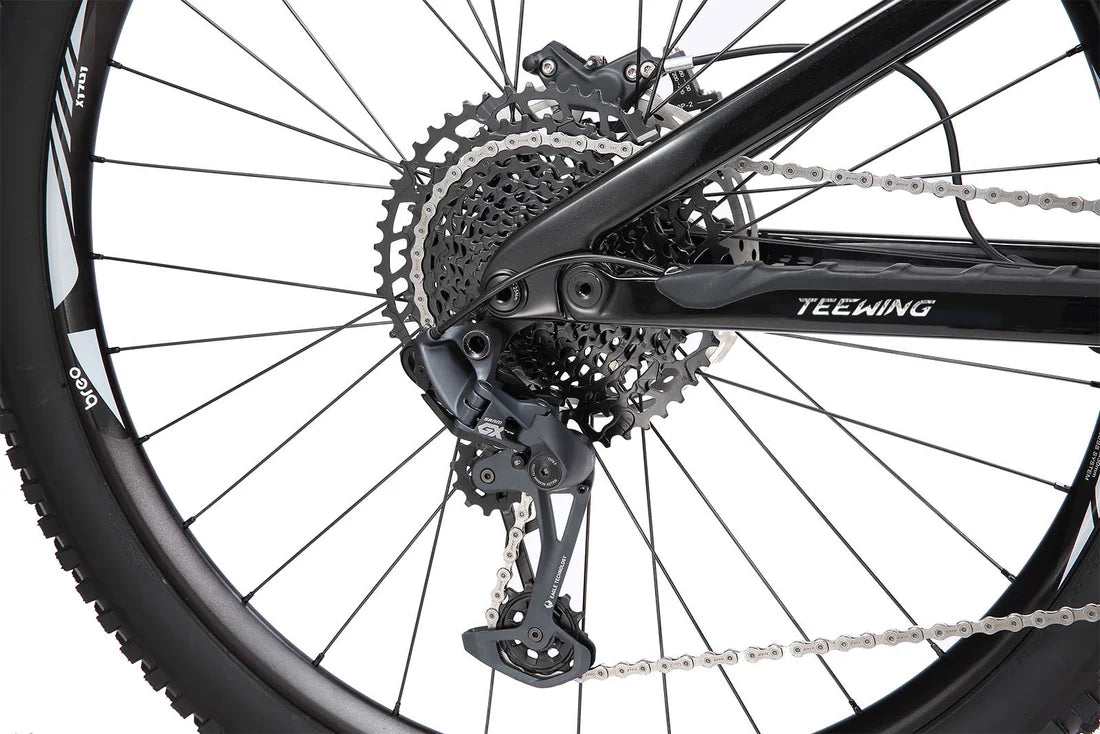

Drivetrain
Shifter	SRAM SL GX EAGLE TRIGGER LUNAR
Rear Derailleur	SRAM GX Eagle Rear Derailleur
Chainring	SRAM Eagle Transmission E-MTB Chainring 104 BCD 36T
Cassette	SRAM CS-PG-1230-A1，11-50T
Chain	SRAM NX Eagle 120LINK
Crankset	DJI Avinox SL Crank 160mm
Brakes

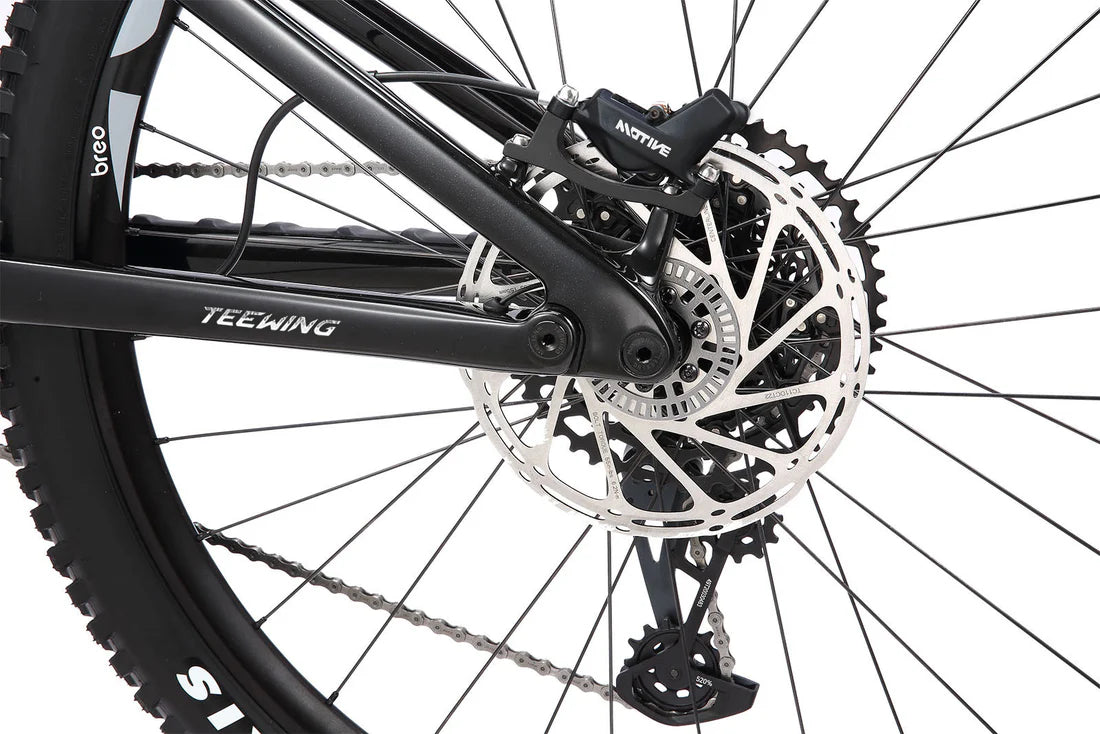

Caliper	SRAM DB MOTIVE BRONZE 4-piston hydraulic disc
Rotor	SRAM DB ROTOR/BOLTS CENTERLINE 200 ROUNDED
Wheels
Rim	Breo-X1701E. Alloy, 29'', 30mm internal width, 32H, tubeless ready
Spokes	Spokes: SAPIM E-Light J-bend
Front Hub	Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt
Rear Hub	Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T
Front Tire	Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO + E-25 TLR
Rear Tire	Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO + E-25 TLR
General Components

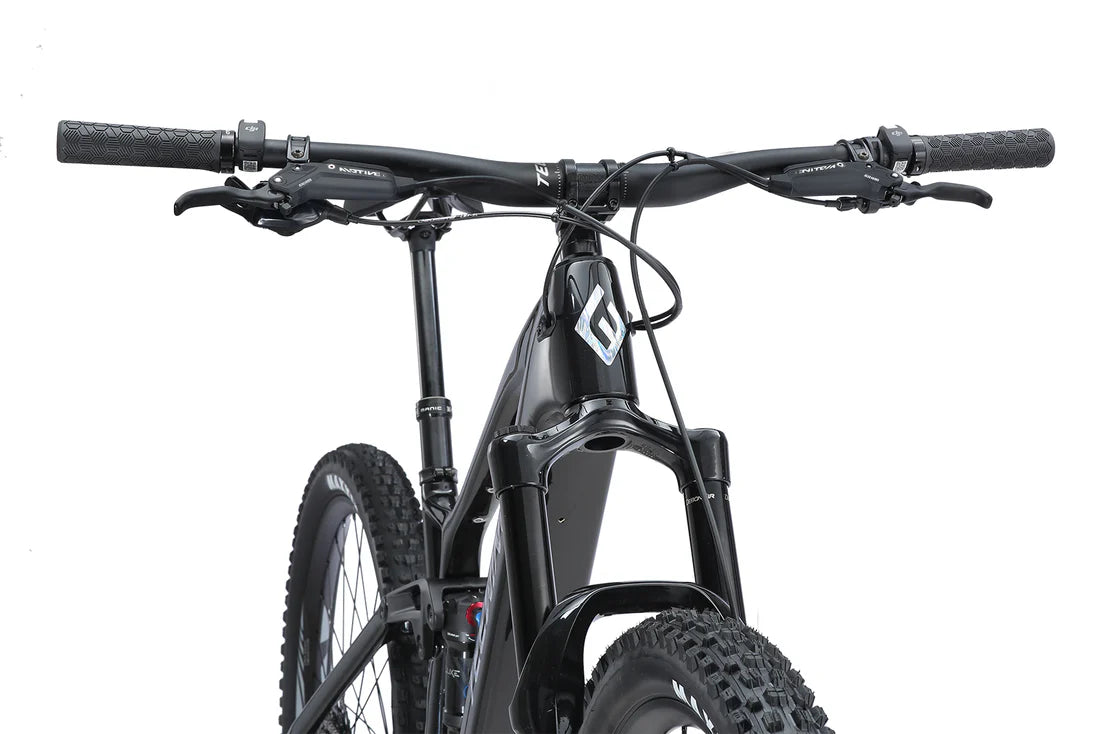

Handlebar	Teewing Enduro Carbon. 20mm rise, 800mm wide. 5-degree upsweep, 8-degree backsweep.
Grips	VELO Enduro Grips
Stem	Teewing Enduro 7075 CNC. Length: 40mm. Clamping diameter: 35mm.
Saddle	Selle Royal SRX Plus
Seatpost	X-Fusion 31.6. M: 150mm. L: 170mm. XL 190mm.
Accessories
User Manual
Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
Shock Pump
Net Weight (with battery) - 21.5kg (47.4lbs)

AReach

453mm

476mm

500mm

BStack

623.9mm

636mm

642.8mm

CSeat-Tube Length

420mm

450mm

480mm

DHead Tube Length

115mm

122.5mm

130mm

ESeat Tube Angle

77°

FActual Seat Tube Angle

71°

GHeat Tube Angle

64.5°

HChain Stay Length

445mm

IFork Length

570mm

JFork Rake/Offset

44mm

KFront Center

783.2mm

814.5mm

841.6mm

L Effective Top Tube Length

598mm

623mm

648.5mm

MBB Drop

30mm

NB-B Height

345mm

OWheelbase

1229mm

1257.8mm

1285mm
